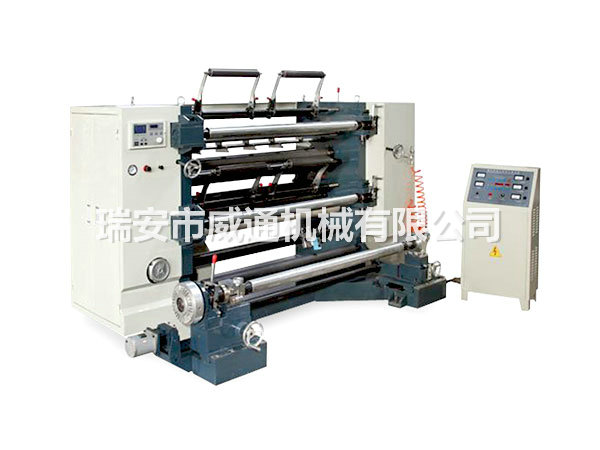

Proname:BY-B cutting machine
Info:
Uses:
Mainly used in plastic film, cellophane, paper, aluminum foil etc.
Features:
This device with photo-electricity tracking, automatic adjustment, tension control, winding count,Excellent properties, the characteristics of simple operation, stable operation.
Main Specification：
| Max.Width |
1300 mm |
| Max unwind diameter |
φ600 mm |
| Max rewind diameter |
φ400 mm |
| Cutting width |
30-1300 mm |
| Lnner dia |
φ76 mm |
| Speed |
160 m / min |
| Accurancy |
±0.5 mm |
| Power |
3.8 kw |
| Weight |
1500 kg |
| Overall dimension |
2200 × 1300 × 1500 mm |
