SES:

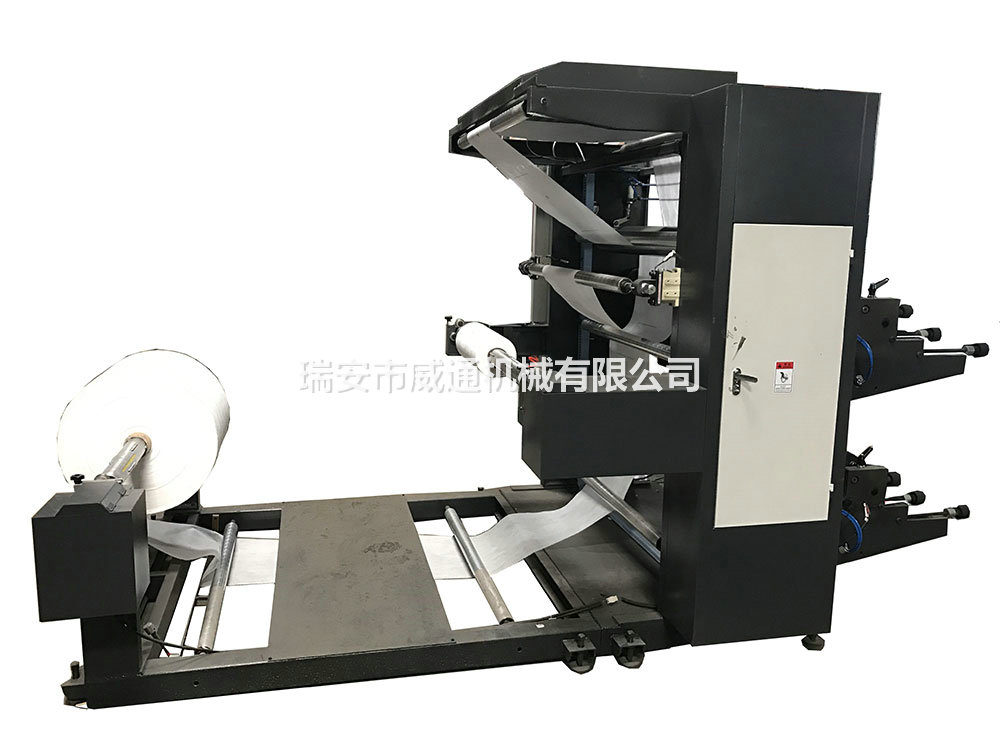

This machine is made of light sensitive resin soft plate as the printing press, co mmonly known as "the flexographic printing press".
Suitable for printing polyethylene, polypropylene plastic bags, cellophane, paper, non-woven fabric, such as packaging materials, are for food, supermarket handbag, vest bags, clothing bags and other packaging ideal printing equipment.
Performance and features:
1. Easy to operate, soft starting and accurate.
2. The meter can set the number of printing according to the requirement, to the number of automatic stop, the automatic stop.
3. Pneumatic lifting and landing plate cylinder, the ink automatically stirred after lifting.
4. The line drum ink, ink color even.
5. Reliable drying system, with high-speed operation, automatic cut-off.
6. Continuous adjustable vertical floral arrangement for 360 degree.
7. Variable frequency speed adjustment, adapt to different printing speed.
8. Both the rollers and the loading rack are equipped with the action and stop buttons, which can be used to control the machine.
Main technical parameters:
|
Model
|
WT2-600C
|
WT2-800C
|
WT2-1000C
|
|
Maximum width of the material
|
600 mm
|
800 mm
|
1000 mm
|
|
Maximum printing width
|
560 mm
|
760 mm
|
960 mm
|
|
Length of print length
|
191-1000 mm
|
191 ~ 1000 mm
|
191 ~ 1000 mm
|
|
The maximum diameter of the coil
|
Ф800 mm
|
Ф800 mm
|
Ф800 mm
|
|
Printing speed
|
10 ~ 50 m / min
|
10 ~ 50 m / min
|
10 ~50 m / min
|
|
Plate thickness (including double-sided plastic bag)
|
2.38 mm
|
2.38 mm
|
2.38 mm
|
|
Total power
|
8 Kw
|
12 Kw
|
16 Kw
|
|
Machine weight
|
1800 kg
|
2000 kg
|
2200 kg
|
|
Dimensions
|
3500 × 1600 × 2600 mm
|
3500 × 1600 × 2600 mm
|
3500 × 1600 × 2600 mm
|
